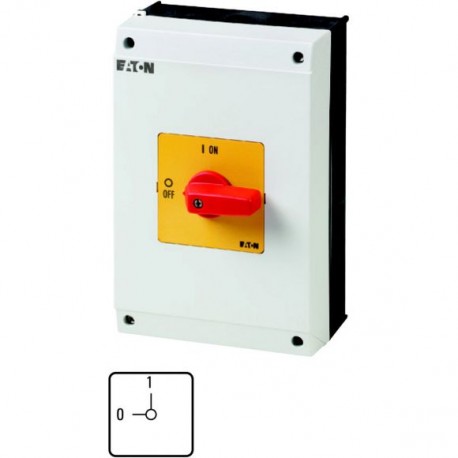

EATON - MOELLER T5B-1-102/I4-RT T5B-1-102/I4-RT 207216 Y7-207216 EATON ELECTRIC On-Off switch, 2 pole, 63 A, Emergency-Stop function, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-1-102/I4-RT 207216 Y7-207216 EATON ELECTRIC On-Off switch, 2 pole, 63 A, Emergency-Stop function, 90 °, ..

T5B-1-102/I4-RT

207216

Y7-207216

EATON - MOELLER

1 Pcs.

On-Off switch, 2 pole, 63 A, Emergency-Stop function, 90 °, surface mounting T5B-1-102/I4-RT Eaton Moeller® series T5B On-Off switch, T5B, 63 A, surface mounting, 1 contact unit(s), 2 pole, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, Product range: On-Off switch, Part group reference: T5B, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 2 pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring an integrated emergency stop function, the Eaton Moeller T5B-1-102/I4-RT on-off switch is built to immediately halt machine operation during hazardous situations. Panel builders typically mount these rotary switches on industrial automation enclosures to maintain strict operator safety compliance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B On-off switch
Catalog Number
207216
Model Code
T5B-1-102/I4-RT
EAN
4015082072162
Product Length/Depth
240 mm
Product Height
162 mm
Product Width
160 mm
Product Weight
1.039 kg
Certifications
CE
CSA Class No.: 3211-07
IEC/EN 60204
IEC/EN 60947-3
UL
CSA-C22.2 No. 94
CSA File No.: 012528
VDE 0660
UL File No.: E36332
UL 60947-4-1
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
