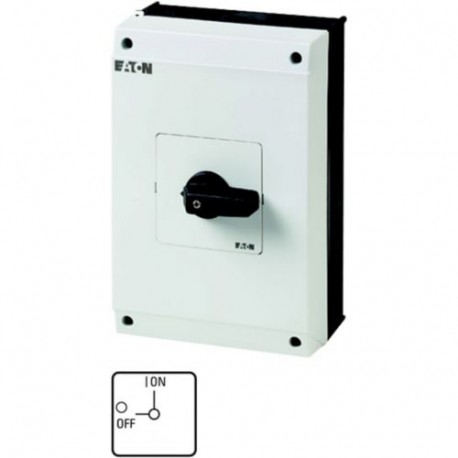

EATON - MOELLER T5B-4-8343/I4 T5B-4-8343/I4 223016 Y7-223016 EATON ELECTRIC On-Off switch, 7-pole, 63 A, 90 °, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-8343/I4 223016 Y7-223016 EATON ELECTRIC On-Off switch, 7-pole, 63 A, 90 °, surface mounting

T5B-4-8343/I4

223016

Y7-223016

EATON - MOELLER

1 Pcs.

On-Off switch, 7-pole, 63 A, 90 °, surface mounting T5B-4-8343/I4 Eaton Moeller® series T5B On-Off switch, T5B, 63 A, surface mounting, 4 contact unit(s), 7-pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T5B, with black thumb grip and front plate, 7-pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T5B-4-8343/I4 223016 Y7-223016 EATON ELECTRIC On-Off switch, 7-pole, 63 A, 90 °, surface mounting is a multi-pole surface-mounted on-off switch used for controlling complex electrical loads and multi-circuit configurations. These switches are typically integrated into machine enclosures and industrial control panels to govern power distribution directly at the equipment site.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 7

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B On-off switch
Catalog Number
223016
Model Code
T5B-4-8343/I4
EAN
4015082230166
Product Length/Depth
240 mm
Product Height
197 mm
Product Width
160 mm
Product Weight
1.435 kg
Certifications
CE
IEC/EN 60947-3
UL 60947-4-1
CSA File No.: 012528
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
VDE 0660
UL
CSA
IEC/EN 60947
UL File No.: E36332
CSA Class No.: 3211-07
IEC/EN 60204
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
