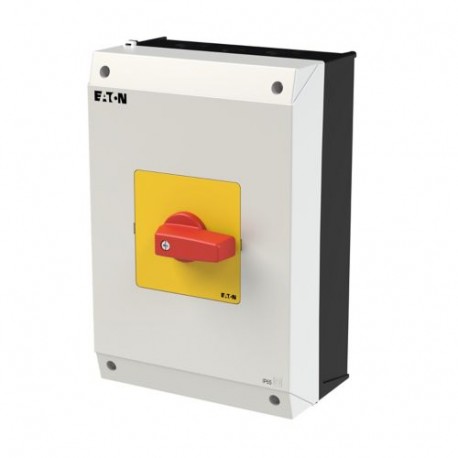

EATON - MOELLER P3-63/I4-RT P3-63/I4-RT 207357 Y7-207357 EATON ELECTRIC On-Off switch, 3 pole, 63 A, Emergency-Stop function, surface mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/I4-RT 207357 Y7-207357 EATON ELECTRIC On-Off switch, 3 pole, 63 A, Emergency-Stop function, surface mo..

P3-63/I4-RT

207357

Y7-207357

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 63 A, Emergency-Stop function, surface mounting P3-63/I4-RT Eaton Moeller® series P3 On-Off switch, P3, 63 A, surface mounting, 3 pole, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
207357
Model Code
P3-63/I4-RT
EAN
4015082073572
Product Length/Depth
124 mm
Product Height
240 mm
Product Width
160 mm
Product Weight
1.002 kg
Compliances
CE Marked
Certifications
EN 60947-3
IEC 60947
UL 508
CSA Std. C22.2 No. 14-05
VDE
CSA
UL
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 207357 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) Yes
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 63 A
Rated permanent current at AC-23, 400 V (EF011777) 63 A
Rated permanent current at AC-21, 400 V (EF009165) 63 A
Rated operation power at AC-3, 400 V (EF001364) 30 kW
Rated short-time withstand current lcw (EF007050) 1.26 kA
Rated operation power at AC-23, 400 V (EF007027) 30 kW
Switching power at 400 V (EF009166) 30 kW
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Red
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 160 mm
Height (EF000040) 240 mm
Depth (EF000049) 124 mm
