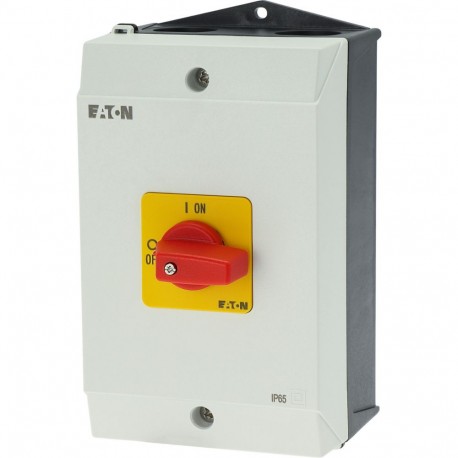

EATON - MOELLER P1-32/I2-RT P1-32/I2-RT 207321 Y7-207321 EATON ELECTRIC On-Off switch, 3 pole, 32 A, Emergency-Stop function, surface mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/I2-RT 207321 Y7-207321 EATON ELECTRIC On-Off switch, 3 pole, 32 A, Emergency-Stop function, surface mo..

P1-32/I2-RT

207321

Y7-207321

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 32 A, Emergency-Stop function, surface mounting P1-32/I2-RT Eaton Moeller® series P1 On-Off switch, 3 pole, 32 A, Emergency-Stop function, surface mounting P1-32/I2-RT On-Off switch, P1, Rated uninterrupted current (Iu): 32 A, Functions: Emergency switching off function, Fitted with: Red thumb grip and yellow front plate, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface-mounted on-off switch from Eaton Moeller, part number P1-32/I2-RT, designed to manually control power flow and provide reliable switching functions in commercial and industrial electrical environments. Such components are commonly integrated into machine enclosures and control panels to manage local power distribution and ensure operator safety during routine upkeep. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
207321
Model Code
P1-32/I2-RT
EAN
4015082073213
Product Length/Depth
107 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.422 kg
Certifications
IEC/EN 60947-3
UL
IEC/EN 60204
CSA
VDE 0660
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
