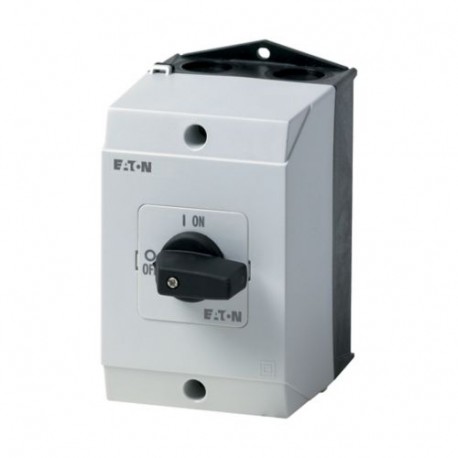

EATON - MOELLER P1-25/I2 P1-25/I2 207299 Y7-207299 EATON ELECTRIC On-Off switch, 3 pole, 25 A, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2 207299 Y7-207299 EATON ELECTRIC On-Off switch, 3 pole, 25 A, surface mounting

P1-25/I2

207299

Y7-207299

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 25 A, surface mounting P1-25/I2 Eaton Moeller® series P1 On-Off switch, 3 pole, 25 A, surface mounting P1-25/I2 On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Fitted with: Black thumb grip and front plate, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface mounting on machine enclosures and distribution boards is the primary role of the Eaton Moeller P1-25/I2 on-off switch. These robust switching devices control the delivery of electrical energy to heavy-duty loads and ensure safe power isolation across manufacturing facilities.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
207299
Model Code
P1-25/I2
EAN
4015082072995
Product Length/Depth
107 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.43 kg
Certifications
IEC/EN 60204
CSA
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
