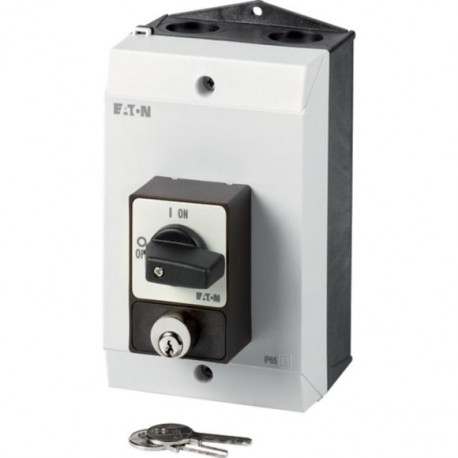

EATON - MOELLER P1-25/I2/SVA(A) P1-25/I2/SVA(A) 207304 Y7-207304 EATON ELECTRIC ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, surface mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2/SVA(A) 207304 Y7-207304 EATON ELECTRIC ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, surface mo..

P1-25/I2/SVA(A)

207304

Y7-207304

EATON - MOELLER

1 Pcs.

ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, surface mounting, P P1-25/I2/SVA(A) Eaton Moeller® series P1 ON-OFF switches, P1, 25 A, surface mounting, 3 pole, with black thumb grip and front plate, Cylinder lock SVA On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Fitted with: Black thumb grip and front plate, Mounting method: Surface mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped with an integrated locking mechanism for enhanced security, the Eaton Moeller P1-25/I2/SVA(A) ON-OFF switch prevents unauthorized operation of connected machinery. These lockable surface-mounted switches are essential in industrial environments where strict lockout-tagout protocols must be maintained.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
207304
Model Code
P1-25/I2/SVA(A)
EAN
4015082073046
Product Length/Depth
126 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.538 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
