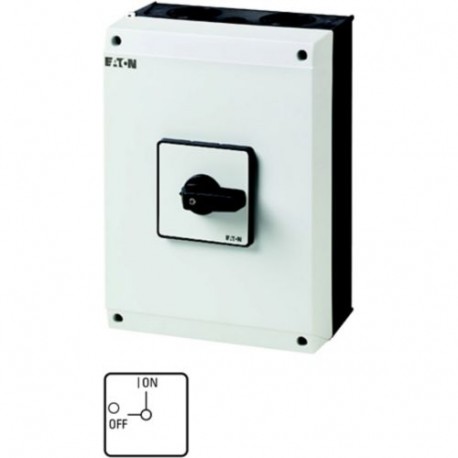

EATON - MOELLER T5-1-102/I5 T5-1-102/I5 207262 Y7-207262 EATON ELECTRIC On-Off switch, 2 pole, 100 A, 90 °, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-1-102/I5 207262 Y7-207262 EATON ELECTRIC On-Off switch, 2 pole, 100 A, 90 °, surface mounting

T5-1-102/I5

207262

Y7-207262

EATON - MOELLER

1 Pcs.

On-Off switch, 2 pole, 100 A, 90 °, surface mounting T5-1-102/I5 Eaton Moeller® series T5 On-Off switch, T5, 100 A, surface mounting, 1 contact unit(s), 2 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T5, with black thumb grip and front plate, 2 pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5-1-102/I5 is a surface-mounted on-off switch designed to manage direct power flow to industrial loads and equipment. Enclosed switching devices of this type are routinely utilized for localized motor control and circuit isolation outside of main control cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 On-off switch
Catalog Number
207262
Model Code
T5-1-102/I5
EAN
4015082072629
Product Length/Depth
280 mm
Product Height
162 mm
Product Width
200 mm
Product Weight
1.692 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
