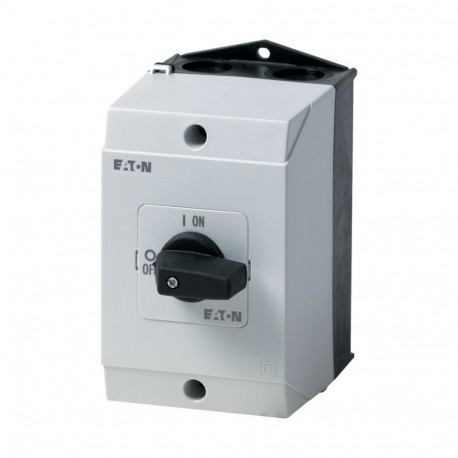

EATON - MOELLER T3-1-102/I2 T3-1-102/I2 207165 Y7-207165 EATON ELECTRIC On-Off switch, 2 pole, 32 A, 90 °, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-102/I2 207165 Y7-207165 EATON ELECTRIC On-Off switch, 2 pole, 32 A, 90 °, surface mounting

T3-1-102/I2

207165

Y7-207165

EATON - MOELLER

1 Pcs.

On-Off switch, 2 pole, 32 A, 90 °, surface mounting T3-1-102/I2 Eaton Moeller® series T3 On-Off switch, T3, 32 A, surface mounting, 1 contact unit(s), 2 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, 2 pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-1-102/I2 is a 2-pole on-off switch engineered for surface mounting applications. Enclosed and surface-mounted manual switches facilitate local circuit control directly adjacent to industrial machinery and equipment units. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Version of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
207165
Model Code
T3-1-102/I2
EAN
4015082071653
Product Length/Depth
181 mm
Product Height
107 mm
Product Width
100 mm
Product Weight
0.389 kg
Certifications
IEC/EN 60204
UL Category Control No.: NLRV
CE
CSA Class No.: 3211-07
UL 60947-4-1
VDE 0660
CSA-C22.2 No. 94
UL
CSA
IEC/EN 60947
UL File No.: E36332
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
