View larger

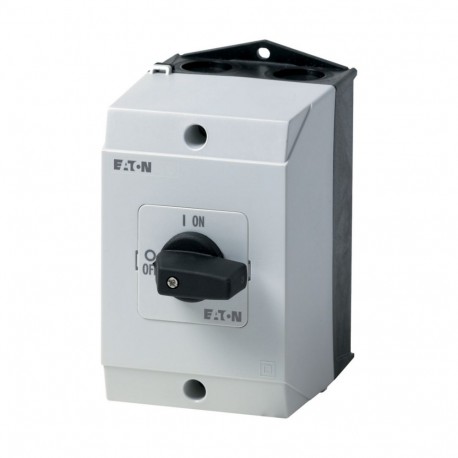

T3-1-8200/I2 207167 Y7-207167 EATON ELECTRIC On-Off switch, 1 pole, 32 A, 90 °, surface mounting
T3-1-8200/I2
207167
Y7-207167
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Enclosed surface-mounted control switches like the Eaton Moeller T3-1-8200/I2 provide straightforward on-off switching capabilities directly at machine sites. These components are standard for local motor control, service isolation, and routing signals in manufacturing environments.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 1
More info
▲General specifications
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
UL 60947-4-1
VDE 0660
UL File No.: E36332
CE
CSA-C22.2 No. 94
CSA Class No.: 3211-07
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947
UL
