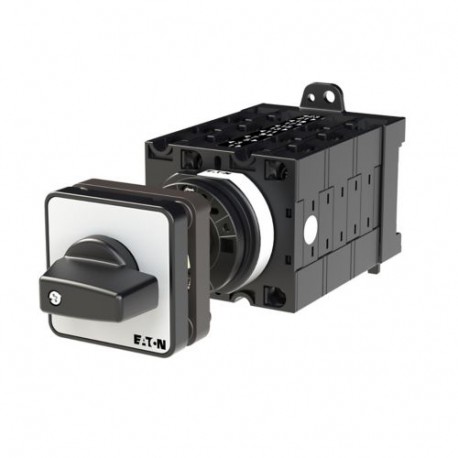

EATON - MOELLER T3-6-15168/Z T3-6-15168/Z 004284 Y7-4284 EATON ELECTRIC On-Off switch, 9-pole + 2 N/O + 1 N/C, 32 A, 90 °, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-15168/Z 004284 Y7-4284 EATON ELECTRIC On-Off switch, 9-pole + 2 N/O + 1 N/C, 32 A, 90 °, rear mounting

T3-6-15168/Z

004284

Y7-4284

EATON - MOELLER

1 Pcs.

On-Off switch, 9-pole + 2 N/O + 1 N/C, 32 A, 90 °, rear mounting Disconnect switch ON-OFF; 9-pole + 2 NO + 1 NC; 32; 90 °; Mounting bottom panel Eaton Moeller® series T3 On-Off switch, T3, 32 A, rear mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, 9-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as an Eaton Moeller on-off switch, this multi-pole rear-mounting component manages complex circuit configurations and manual control routines in industrial setups. Multi-circuit switches of this type allow operators to coordinate several switching tasks simultaneously from a single control point.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 9
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
004284
Model Code
T3-6-15168/Z
EAN
4015080042846
Product Length/Depth
179 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.366 kg
Certifications
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA
CSA File No.: 012528
UL File No.: E36332
IEC/EN 60947-3
CE
UL
CSA Class No.: 3211-05
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
