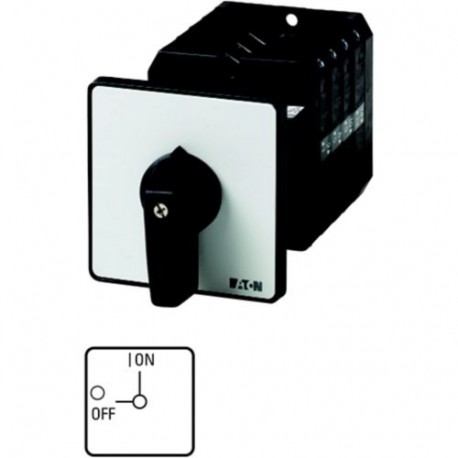

EATON - MOELLER T5-4-8344/Z T5-4-8344/Z 095956 Y7-95956 EATON ELECTRIC On-Off switch, 8-pole, 100 A, 90 °, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-4-8344/Z 095956 Y7-95956 EATON ELECTRIC On-Off switch, 8-pole, 100 A, 90 °, rear mounting

T5-4-8344/Z

095956

Y7-95956

EATON - MOELLER

1 Pcs.

On-Off switch, 8-pole, 100 A, 90 °, rear mounting ON-OFF disconnect switch; 8-poles; 100 A; 90 °; Panel bottom mounting Eaton Moeller® series T5 On-Off switch, T5, 100 A, rear mounting, 4 contact unit(s), 8-pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T5, with black thumb grip and front plate, 8-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5-4-8344/Z operates as an on-off switch capable of handling heavy-duty industrial switching tasks. These multipole components manage complex routing and power flow control within high-capacity electrical panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 600 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 8

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 On-off switch
Catalog Number
095956
Model Code
T5-4-8344/Z
EAN
4015080959564
Product Length/Depth
182 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.778 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
