View larger

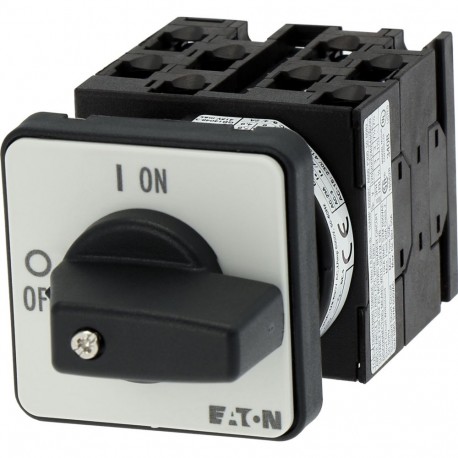

T0-4-8344/E 014000 Y7-14000 EATON ELECTRIC On-Off switch, 8-pole, 20 A, 90 °, flush mounting
T0-4-8344/E
014000
Y7-14000
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
On-Off switch, 8-pole, 20 A, 90 °, flush mounting built by Eaton Moeller operates as a multi-pole switching solution designed for flush installation within control consoles and distribution boards. This component enables precise manual control of complex multi-circuit electrical configurations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 8
- Motor drive optional (EF007386): No
More info
▲General specifications
CE
CSA
VDE 0660
UL
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-3
UL Category Control No.: NLRV
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA-C22.2 No. 94
