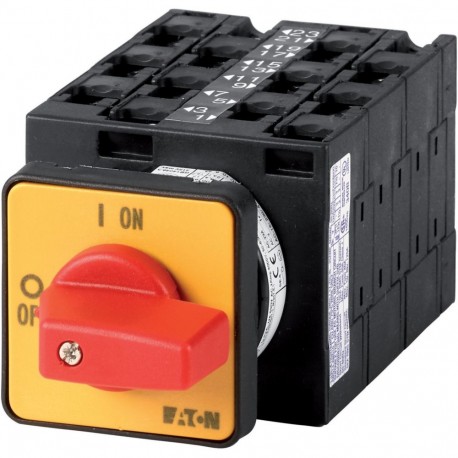

T3-6-13/E-RT 004225 Y7-4225 EATON ELECTRIC On-Off switch, 6 pole, 32 A, Emergency-Stop function, 90 °, flush..
T3-6-13/E-RT
004225
Y7-4225
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T3-6-13/E-RT on-off switch provides manual circuit control and load switching in various electrical control panels and automation setups. Devices of this type manage routine machine activation, power routing, and localized equipment isolation across industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 6
- Motor drive optional (EF007386): No
More info
▲General specifications
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947-3
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60947
UL
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60204
CSA
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
