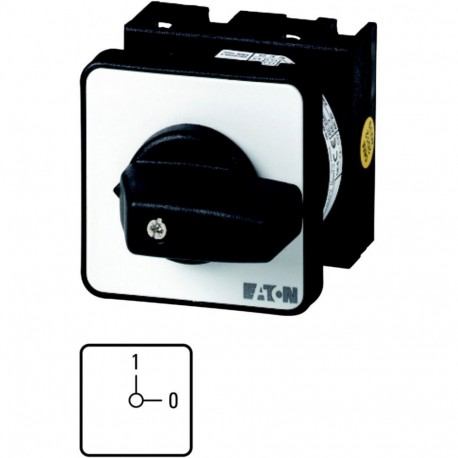

EATON - MOELLER T0-2-8324/EZ T0-2-8324/EZ 011805 Y7-11805 EATON ELECTRIC On-Off switch, 4 pole, 20 A, 90 °, centre mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8324/EZ 011805 Y7-11805 EATON ELECTRIC On-Off switch, 4 pole, 20 A, 90 °, centre mounting

T0-2-8324/EZ

011805

Y7-11805

EATON - MOELLER

1 Pcs.

On-Off switch, 4 pole, 20 A, 90 °, centre mounting ON-OFF 4-pole disconnect switch 20 A 90° Flush mount Eaton Moeller® series T0 On-Off switch, T0, 20 A, centre mounting, 2 contact unit(s), 4 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 4 pole, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-2-8324/EZ on-off switch controls the flow of current in machine control circuits and power distribution setups. Manual rotary switches provide straightforward operational control for electrical loads across commercial and industrial environments.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 500 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
011805
Model Code
T0-2-8324/EZ
EAN
4015080118053
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
CE
CSA File No.: 012528
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL
UL File No.: E36332
CSA Class No.: 3211-05
UL 60947-4-1
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
