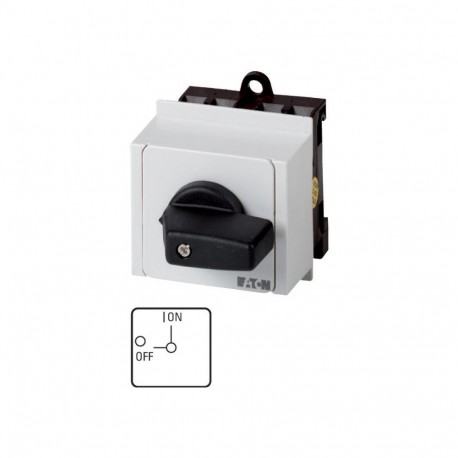

EATON - MOELLER T0-2-8324/IVS T0-2-8324/IVS 011807 Y7-11807 EATON ELECTRIC On-Off switch, 4 pole, 20 A, 90 °, service distribution board m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8324/IVS 011807 Y7-11807 EATON ELECTRIC On-Off switch, 4 pole, 20 A, 90 °, service distribution board m..

T0-2-8324/IVS

011807

Y7-11807

EATON - MOELLER

1 Pcs.

On-Off switch, 4 pole, 20 A, 90 °, service distribution board mounting ON-OFF Disconnector Switch 4 Pole 20 A 90° Cabinet Mount Eaton Moeller® series T0 On-Off switch, T0, 20 A, service distribution board mounting, 2 contact unit(s), 4 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 4 pole, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller on-off switch provides dependable manual circuit control and isolation within service distribution boards and machine enclosures. These robust components enable operators to safely manage electrical power feeds during day-to-day operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 500 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
011807
Model Code
T0-2-8324/IVS
EAN
4015080118077
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
UL 60947-4-1
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CSA
UL File No.: E36332
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
CE
CSA File No.: 012528
CSA Class No.: 3211-05
UL
IEC/EN 60947
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
