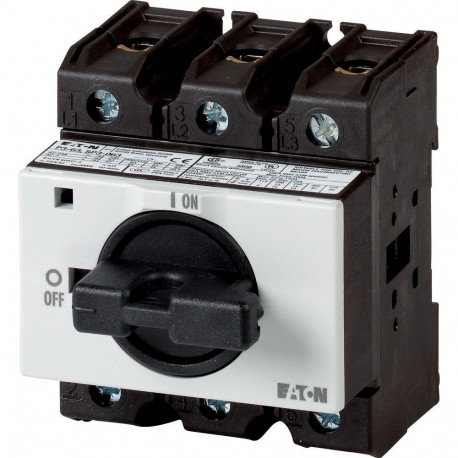

EATON - MOELLER P3-100/IVS/N/HI11 P3-100/IVS/N/HI11 067356 Y7-67356 EATON ELECTRIC On-Off switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, service d.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/IVS/N/HI11 067356 Y7-67356 EATON ELECTRIC On-Off switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, service d..

P3-100/IVS/N/HI11

067356

Y7-67356

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, service distribution board mounting ON-OFF disconnector switch 3 poles + N + 1 NO + 1 NC 100 A Mounting Eaton Moeller® series P3 On-Off switch, P3, 100 A, service distribution board mounting, 3 pole + N, 1 N/O, 1 N/C, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, 3 pole + N, Degree of Protection: Front IP30, Design: service distribution board mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built by Eaton Moeller, the P3-100/IVS/N/HI11 is an On-Off switch designed for heavy industrial switching applications and electrical panel control. This type of component manages power routing and circuit isolation safely under high-load conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
067356
Model Code
P3-100/IVS/N/HI11
EAN
4015080673569
Product Length/Depth
90 mm
Product Height
90 mm
Product Width
105 mm
Product Weight
0.398 kg
Certifications
CSA File No.: 012528
IEC/EN 60947
VDE 0660
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CE
UL File No.: E36332
CSA Class No.: 3211-05
UL
CSA
UL Category Control No.: NLRV
UL 60947-4-1
IEC/EN 60947-3
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
