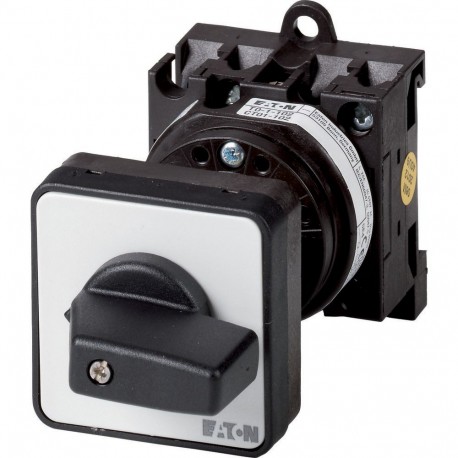

EATON - MOELLER T0-2-8900/Z T0-2-8900/Z 207407 Y7-207407 EATON ELECTRIC On-Off switch, 3 pole + N, 20 A, 90 °, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8900/Z 207407 Y7-207407 EATON ELECTRIC On-Off switch, 3 pole + N, 20 A, 90 °, rear mounting

T0-2-8900/Z

207407

Y7-207407

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 20 A, 90 °, rear mounting T0-2-8900/Z Eaton Moeller® series T0 On-Off switch, 3 pole + N, 20 A, 90 °, rear mounting T0-2-8900/Z On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 3 pole + N, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring a 3-pole plus neutral configuration with rear mounting capabilities, the Eaton Moeller T0-2-8900/Z on-off switch manages circuit pathways efficiently. Enclosure-mounted rotary switches allow technicians to toggle auxiliary systems and control circuits within industrial enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
207407
Model Code
T0-2-8900/Z
EAN
4015082074074
Product Length/Depth
128 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.134 kg
Certifications
CSA File No.: 012528
VDE 0660
CE
UL 60947-4-1
IEC/EN 60204
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL
UL Category Control No.: NLRV
IEC/EN 60947
UL File No.: E36332
CSA
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
