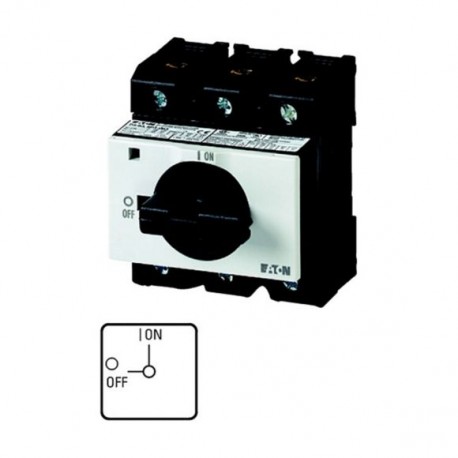

EATON - MOELLER P3-63/IVS/N P3-63/IVS/N 022267 Y7-22267 EATON ELECTRIC On-Off switch, 3 pole + N, 63 A, Lockable in the 0 (Off) position.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/IVS/N 022267 Y7-22267 EATON ELECTRIC On-Off switch, 3 pole + N, 63 A, Lockable in the 0 (Off) position..

P3-63/IVS/N

022267

Y7-22267

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 63 A, Lockable in the 0 (Off) position, service distribution board mounting ON-OFF disconnector switch 3 poles + N 63 A Lockable in position Eaton Moeller® series P3 On-Off switch, P3, 63 A, service distribution board mounting, 3 pole + N, with black thumb grip and front plate, Lockable in the 0 (Off) position On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP30, Design: service distribution board mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number P3-63/IVS/N is an On-Off switch engineered for controlling electrical circuits in industrial setups. Switches of this category allow operators to safely connect or disconnect power loads manually during routine operation or maintenance tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
022267
Model Code
P3-63/IVS/N
EAN
4015080222675
Product Length/Depth
87 mm
Product Height
83 mm
Product Width
90 mm
Product Weight
0.317 kg
Certifications
UL
CSA-C22.2 No. 94
IEC/EN 60204
IEC/EN 60947-3
UL File No.: E36332
VDE 0660
CE
UL Category Control No.: NLRV
IEC/EN 60947
UL 60947-4-1
CSA
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
