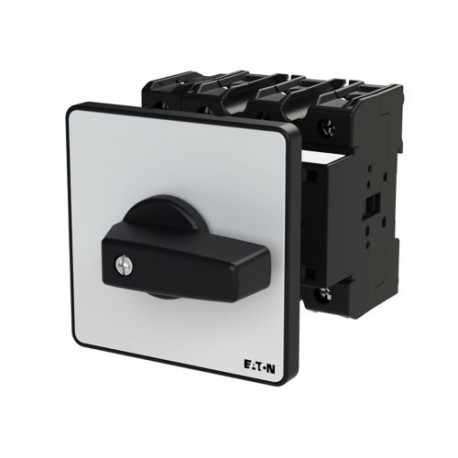

EATON - MOELLER P3-63/Z/N P3-63/Z/N 027013 Y7-27013 EATON ELECTRIC On-Off switch, 3 pole + N, 63 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/Z/N 027013 Y7-27013 EATON ELECTRIC On-Off switch, 3 pole + N, 63 A, rear mounting

P3-63/Z/N

027013

Y7-27013

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 63 A, rear mounting Disconnector switch ON-OFF; 3 poles + N; 63 A; Panel Background Mount Eaton Moeller® series P3 On-Off switch, P3, 63 A, rear mounting, 3 pole + N, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Integrated into industrial control assemblies, the P3-63/Z/N 027013 Y7-27013 EATON ELECTRIC On-Off switch, 3 pole + N, 63 A, rear mounting serves as a manual actuator for connecting and disconnecting electrical loads securely. This hardware safely manages circuit continuity in automation control panels and distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
027013
Model Code
P3-63/Z/N
EAN
4015080270133
Product Length/Depth
140 mm
Product Height
87 mm
Product Width
90 mm
Product Weight
0.43 kg
Certifications
VDE 0660
UL
CSA
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL 60947-4-1
CSA-C22.2 No. 94
CSA File No.: 012528
CE
CSA Class No.: 3211-05
UL File No.: E36332
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
