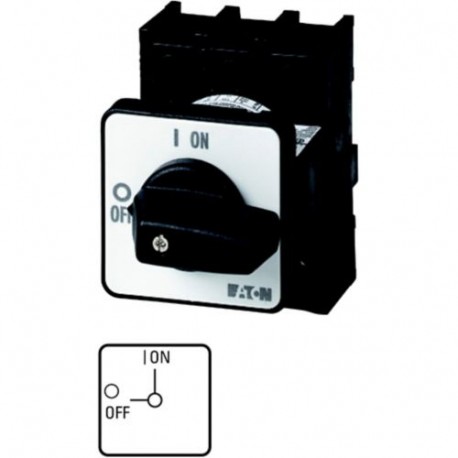

EATON - MOELLER P1-32/EZ/N P1-32/EZ/N 095829 Y7-95829 EATON ELECTRIC On-Off switch, 3 pole + N, 32 A, centre mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/EZ/N 095829 Y7-95829 EATON ELECTRIC On-Off switch, 3 pole + N, 32 A, centre mounting

P1-32/EZ/N

095829

Y7-95829

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 32 A, centre mounting ON-OFF disconnect switch; 3 poles + N; 32 A; Recessed mounting with Eaton Moeller® series P1 On-Off switch, P1, 32 A, centre mounting, 3 pole + N, with black thumb grip and front plate On-Off switch, P1, Rated uninterrupted current (Iu): 32 A, Fitted with: Black thumb grip and front plate, Mounting method: Center mounting, Number of poles: Four-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured with three poles plus neutral, the Eaton Moeller P1-32/EZ/N On-Off switch offers reliable centre mounting capability for control cabinet applications. Panel builders utilize switches of this design to regulate power flow and isolate control circuits safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
095829
Model Code
P1-32/EZ/N
EAN
4015080958291
Product Length/Depth
95 mm
Product Height
70 mm
Product Width
65 mm
Product Weight
0.182 kg
Certifications
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL
CSA-C22.2 No. 94
UL 60947-4-1
CSA
IEC/EN 60204
CE
UL File No.: E36332
CSA File No.: 012528
VDE 0660
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
