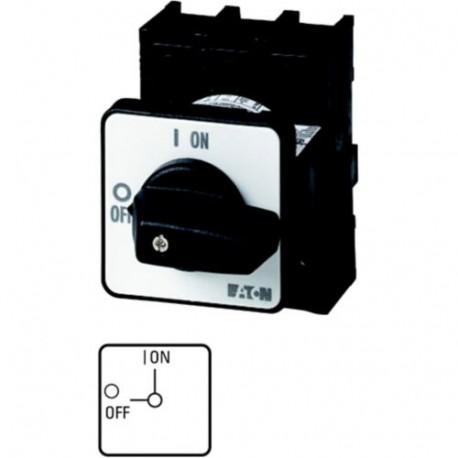

EATON - MOELLER P1-25/EZ/N P1-25/EZ/N 079218 Y7-79218 EATON ELECTRIC On-Off switch, 3 pole + N, 25 A, centre mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/EZ/N 079218 Y7-79218 EATON ELECTRIC On-Off switch, 3 pole + N, 25 A, centre mounting

P1-25/EZ/N

079218

Y7-79218

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 25 A, centre mounting ON-OFF 3-pole + N 25 A disconnector switch Flush mount with Eaton Moeller® series P1 On-Off switch, P1, 25 A, centre mounting, 3 pole + N, with black thumb grip and front plate On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Fitted with: Black thumb grip and front plate, Mounting method: Center mounting, Number of poles: Four-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
079218
Model Code
P1-25/EZ/N
EAN
4015080792185
Product Length/Depth
99 mm
Product Height
70 mm
Product Width
64 mm
Product Weight
0.182 kg
Certifications
CSA
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
VDE 0660
CSA Class No.: 3211-05
UL File No.: E36332
CSA-C22.2 No. 94
IEC/EN 60204
IEC/EN 60947
UL
CE
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 079218 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 25 A
Rated permanent current at AC-23, 400 V (EF011777) 25 A
Rated permanent current at AC-21, 400 V (EF009165) 25 A
Rated operation power at AC-3, 400 V (EF001364) 7.5 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 13 kW
Switching power at 400 V (EF009166) 13 kW
Conditioned rated short-circuit current Iq (EF001444) 50 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 64 mm
Height (EF000040) 70 mm
Depth (EF000049) 99 mm
