EATON - MOELLER P3-100/Z/N P3-100/Z/N 038878 Y7-38878 EATON ELECTRIC On-Off switch, 3 pole + N, 100 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

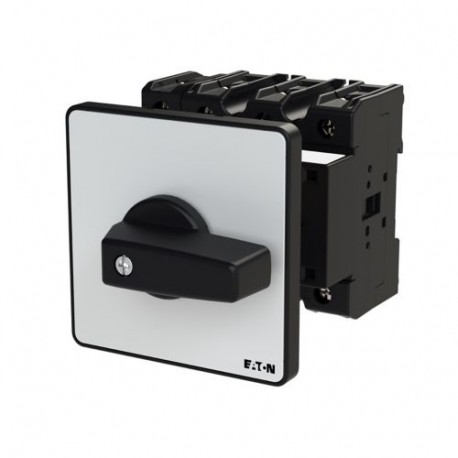

P3-100/Z/N 038878 Y7-38878 EATON ELECTRIC On-Off switch, 3 pole + N, 100 A, rear mounting

P3-100/Z/N

038878

Y7-38878

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 100 A, rear mounting ON-OFF 3-pole + N 100 A disconnector switch Bottom Panel Mount Eaton Moeller® series P3 On-Off switch, P3, 100 A, rear mounting, 3 pole + N, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
038878
Model Code
P3-100/Z/N
EAN
4015080388784
Product Length/Depth
150 mm
Product Height
114 mm
Product Width
90 mm
Product Weight
0.43 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
VDE 0660
CSA
CE
UL
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60204
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 038878 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 100 A
Rated permanent current at AC-23, 400 V (EF011777) 100 A
Rated permanent current at AC-21, 400 V (EF009165) 100 A
Rated operation power at AC-3, 400 V (EF001364) 37 kW
Rated short-time withstand current lcw (EF007050) 2 kA
Rated operation power at AC-23, 400 V (EF007027) 55 kW
Switching power at 400 V (EF009166) 55 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 90 mm
Height (EF000040) 114 mm
Depth (EF000049) 150 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
