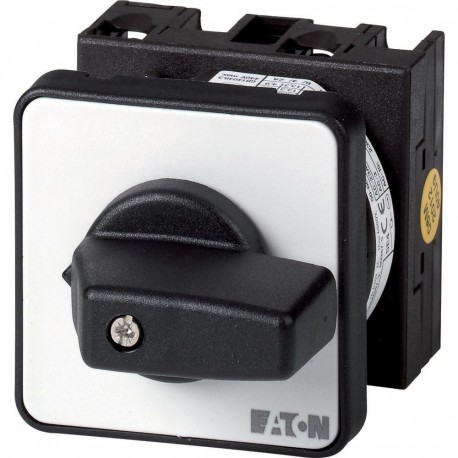

T0-2-15679/EZ 031760 Y7-31760 EATON ELECTRIC On-Off switch, 3 pole + 1 N/O, 20 A, 90 °, centre mounting
T0-2-15679/EZ
031760
Y7-31760
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller on-off switch offers reliable mechanical switching capability for industrial control panels and motor feeder networks. These units facilitate manual electrical isolation and operational control in manufacturing and building automation systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 3
More info
▲General specifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL File No.: E36332
CSA-C22.2 No. 94
VDE 0660
CE
CSA File No.: 012528
UL 60947-4-1
IEC/EN 60947
IEC/EN 60947-3
CSA
UL
UL Category Control No.: NLRV
