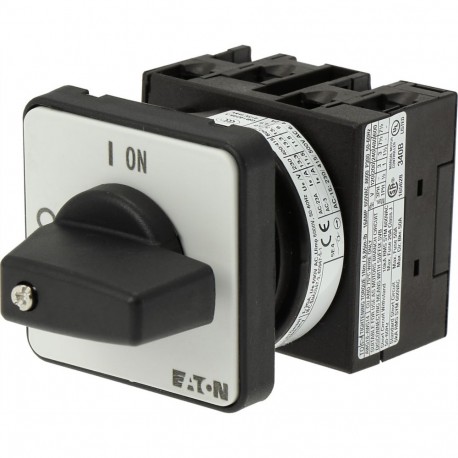

EATON - MOELLER T0-2-1/E T0-2-1/E 024639 Y7-24639 EATON ELECTRIC On-Off switch, 3 pole, 20 A, 90 °, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-1/E 024639 Y7-24639 EATON ELECTRIC On-Off switch, 3 pole, 20 A, 90 °, flush mounting

T0-2-1/E

024639

Y7-24639

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 20 A, 90 °, flush mounting ON-OFF Disconnect Switch 3 Poles 20 A 90° Flush Mount Eaton Moeller® series T0 On-Off switch, T0, 20 A, flush mounting, 2 contact unit(s), 3 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Siemens 3KD3640-0NE20-0 switch disconnector delivers dependable circuit isolation and load-switching capabilities for commercial and industrial electrical distribution. Panel builders integrate these basic units to ensure safe disconnection points across multi-phase power systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Product Article Number (Market Facing Number): 3KD3640-0NE20-0
  • Product family: Basic Devices
  • Product Lifecycle (PLM): PM300:Active Product
  • Metal Factor: LOA-----
  • Delivery information Export Control Regulations: AL : N / ECCN : N
  • Standard lead time ex-works: 5 Day/Days
  • Net Weight (kg): 1,253 Kg
  • Packaging Dimension: 148,00 x 169,00 x 85,00
  • Package size unit of measure: MM
  • Quantity Unit: 1 Piece
  • Packaging Quantity: 1
  • Additional Product Information EAN: 4001869472621
  • UPC: Not available
  • Commodity Code: 85365080
  • LKZ_FDB/ CatalogID: LV10.1
  • Product Group: 5378

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
024639
Model Code
T0-2-1/E
EAN
4015080246398
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA File No.: 012528
IEC/EN 60947-3
UL 60947-4-1
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA-C22.2 No. 94
IEC/EN 60204
CSA
UL Category Control No.: NLRV
VDE 0660
CE
CSA Class No.: 3211-05
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
