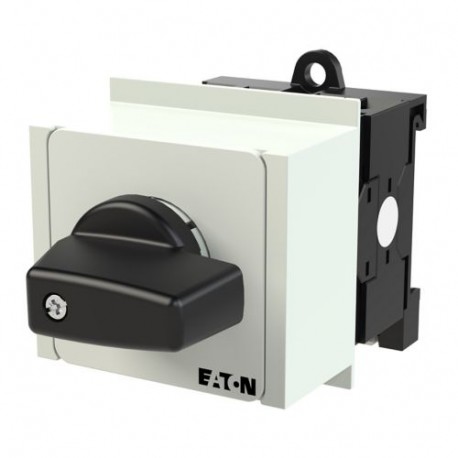

EATON - MOELLER T0-2-1/IVS T0-2-1/IVS 031758 Y7-31758 EATON ELECTRIC On-Off switch, 3 pole, 20 A, 90 °, service distribution board moun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-1/IVS 031758 Y7-31758 EATON ELECTRIC On-Off switch, 3 pole, 20 A, 90 °, service distribution board moun..

T0-2-1/IVS

031758

Y7-31758

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 20 A, 90 °, service distribution board mounting ON-OFF disconnect switch. 3 poles. 20 A. 90°. Cabinet mounting Eaton Moeller® series T0 On-Off switch, T0, 20 A, service distribution board mounting, 2 contact unit(s), 3 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 3 pole, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

EATON ELECTRIC On-Off switch, 3 pole, 20 A, 90 °, service distribution board moun.. is a compact rotary control device used for manual power connection and disconnection in low-voltage distribution systems. Control panel builders routinely install these switches to regulate localized machine power feeds and service circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 3

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
031758
Model Code
T0-2-1/IVS
EAN
4015080317586
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
UL
UL Category Control No.: NLRV
IEC/EN 60947
UL 60947-4-1
CSA
CSA File No.: 012528
CE
UL File No.: E36332
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
