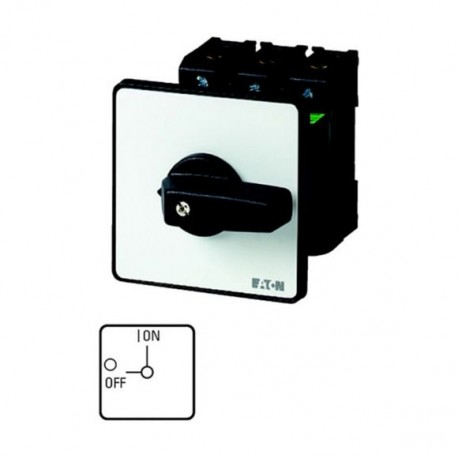

EATON - MOELLER P3-63/Z P3-63/Z 050591 Y7-50591 EATON ELECTRIC On-Off switch, 3 pole, 63 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-63/Z 050591 Y7-50591 EATON ELECTRIC On-Off switch, 3 pole, 63 A, rear mounting

P3-63/Z

050591

Y7-50591

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 63 A, rear mounting Disconnector switch ON-OFF; 3 poles; 63 A; Panel Background Mount Eaton Moeller® series P3 On-Off switch, P3, 63 A, rear mounting, 3 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

On-off switch units such as the P3-63/Z 050591 Y7-50591 EATON ELECTRIC On-Off switch are deployed in electrical distribution boards to manually open and close load circuits under standard operational demands. They offer dependable mechanical switching for industrial motors and distribution networks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.26 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 100 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
050591
Model Code
P3-63/Z
EAN
4015080505914
Product Length/Depth
140 mm
Product Height
87 mm
Product Width
87 mm
Product Weight
0.36 kg
Certifications
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL
CSA File No.: 012528
CSA Class No.: 3211-05
UL 60947-4-1
VDE 0660
CSA
UL File No.: E36332
IEC/EN 60204
UL Category Control No.: NLRV
CSA-C22.2 No. 94
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
