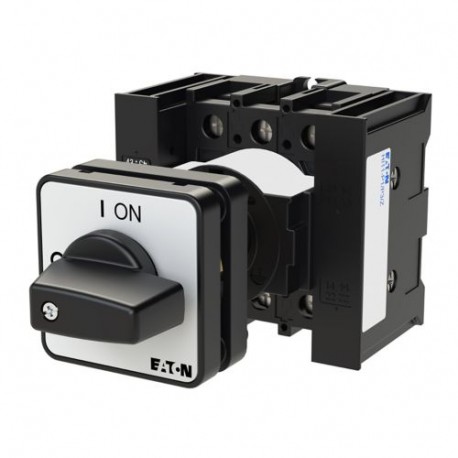

P1-32/Z 098049 Y7-98049 EATON ELECTRIC On-Off switch, 3 pole, 32 A, rear mounting

P1-32/Z

098049

Y7-98049

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 32 A, rear mounting ON-OFF 3-pole disconnector switch 32 A Panel Bottom Mount Eaton Moeller® series P1 On-Off switch, P1, 32 A, rear mounting, 3 pole, with black thumb grip and front plate On-Off switch, P1, Rated uninterrupted current (Iu): 32 A, Fitted with: Black thumb grip and front plate, Mounting method: Rear mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches
