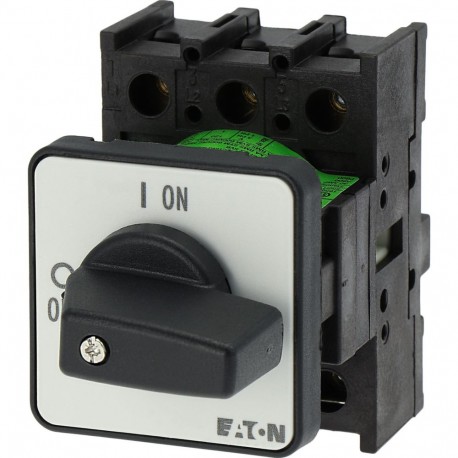

P1-32/E 079065 Y7-79065 EATON ELECTRIC On-Off switch, 3 pole, 32 A, flush mounting is a three-pole on-off rotary switch engineered for flush mounting installations on panel fronts. Panel builders rely on these switches to provide straightforward manual control over motor circuits and electrical loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Product Name: Eaton Moeller® series P1 On-off switch
- Catalog Number: 079065
- Model Code: P1-32/E
- EAN: 4015080790655
- Product Length/Depth: 95 mm
- Product Height: 70 mm
- Product Width: 49 mm
- Product Weight: 0.143 kg
- Catalog Notes: Rated Short-time Withstand Current (Icw) for a time of 1 second
- Fitted with:: Black thumb grip and front plate
- Number of poles: 3
- Accessories: Auxiliary contact or neutral conductor fitted by user.
- Degree of protection: NEMA 12
- Degree of protection (front side): IP65
- Lifespan, mechanical: 300,000 Operations
- Mounting method: Flush mounting
More info
▲General specifications
| Product Name | Eaton Moeller® series P1 On-off switch |
| Catalog Number | 079065 |
| Model Code | P1-32/E |
| EAN | 4015080790655 |
| Product Length/Depth | 95 mm |
| Product Height | 70 mm |
| Product Width | 49 mm |
| Product Weight | 0.143 kg |
| Certifications | CE CSA Class No.: 3211-05 CSA-C22.2 No. 94 CSA UL File No.: E36332 CSA-C22.2 No. 60947-4-1-14 UL 60947-4-1 VDE 0660 CSA File No.: 012528 IEC/EN 60947 IEC/EN 60947-3 IEC/EN 60204 UL UL Category Control No.: NLRV |
| Catalog Notes | Rated Short-time Withstand Current (Icw) for a time of 1 second |
Features & Functions
| Fitted with: | Black thumb grip and front plate |
| Number of poles | 3 |
General information
| Accessories | Auxiliary contact or neutral conductor fitted by user. |
| Degree of protection | NEMA 12 |
| Degree of protection (front side) | IP65 |
| Lifespan, mechanical | 300,000 Operations |
| Mounting method | Flush mounting |
| Mounting position | As required |
| Operating frequency | 1200 Operations/h |
| Overvoltage category | III |
| Pollution degree | 3 |
| Product Category | On-Off switch |
| Product Category | On-Off switch |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Safe isolation | 440 V AC, Between the contacts, According to EN 61140 |
| Safety parameter (EN ISO 13849-1) | B10d values as per EN ISO 13849-1, table C.1 |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms |
| Suitable for | Front mounting 4-hole Branch circuits, suitable as motor disconnect, (UL/CSA) |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 50 °C |
| Ambient operating temperature (enclosed) - min | -25 °C |
| Ambient operating temperature (enclosed) - max | 40 °C |
| Climatic proofing | Damp heat, cyclic, to IEC 60068-2-30 Damp heat, constant, to IEC 60068-2-78 |
Terminal capacities
| Terminal capacity | 1 x (1.5 - 6) mm², solid or stranded 2 x (1.5 - 6) mm², solid or stranded 1 x (1 - 4) mm², flexible with ferrules to DIN 46228 2 x (1 - 4) mm², flexible with ferrules to DIN 46228 14 - 8 AWG, solid or flexible with ferrule |
| Screw size | M4, Terminal screw |
| Tightening torque | 1.6 Nm, Screw terminals 14.1 lb-in, Screw terminals |
Electrical rating
| Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3) | 260 A |
| Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3) | 300 A |
| Rated breaking capacity at 500 V (cos phi to IEC 60947-3) | 290 A |
| Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3) | 250 A |
| Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V | 26.4 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V | 26.4 A |
| Rated operational current (Ie) at AC-3, 500 V | 23.4 A |
| Rated operational current (Ie) at AC-3, 660 V, 690 V | 14.7 A |
| Rated operational current (Ie) at AC-21, 440 V | 32 A |
| Rated operational current (Ie) at AC-23A, 230 V | 32 A |
| Rated operational current (Ie) at AC-23A, 400 V, 415 V | 32 A |
| Rated operational current (Ie) at AC-23A, 500 V | 30 A |
| Rated operational current (Ie) at AC-23A, 690 V | 19.8 A |
| Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms | 32 A |
| Rated operational current (Ie) at DC-23A, 24 V | 25 A |
| Rated operational current (Ie) at DC-23A, 48 V | 25 A |
| Rated operational current (Ie) at DC-23A, 60 V | 25 A |
| Rated operational current (Ie) at DC-23A, 120 V | 12 A |
| Rated operational power at AC-3, 380/400 V, 50 Hz | 13 kW |
| Rated operational power at AC-3, 415 V, 50 Hz | 13 kW |
| Rated operational power at AC-3, 500 V, 50 Hz | 18.5 kW |
| Rated operational power at AC-3, 690 V, 50 Hz | 15 kW |
| Rated operational power at AC-23A, 220/230 V, 50 Hz | 7.5 kW |
| Rated operational power at AC-23A, 400 V, 50 Hz | 15 kW |
| Rated operational power at AC-23A, 500 V, 50 Hz | 18.5 kW |
| Rated operational power at AC-23A, 690 V, 50 Hz | 15 kW |
| Rated operational voltage (Ue) at AC - max | 690 V |
| Rated uninterrupted current (Iu) | 32 A |
| Uninterrupted current | Rated uninterrupted current Iu is specified for max. cross-section. |
Short-circuit rating
| Rated conditional short-circuit current (Iq) | 80 kA |
| Rated short-time withstand current (Icw) | 640 A, Contacts, 1 second 0.64 kA |
| Short-circuit current rating (basic rating) | 5 kA, SCCR (UL/CSA) 110A, max. Fuse, SCCR (UL/CSA) |
| Short-circuit current rating (high fault) | 50 A, Class J, max. Fuse, SCCR (UL/CSA) 10 kA, SCCR (UL/CSA) |
| Short-circuit protection rating | 50 A gG/gL, Fuse, Contacts |
Switching capacity
| Load rating | 1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor) 2 x Iₑ (with intermittent operation class 12, 25 % duty factor) 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor) |
| Number of contacts in series at DC-23A, 24 V | 1 |
| Number of contacts in series at DC-23A, 48 V | 2 |
| Number of contacts in series at DC-23A, 60 V | 2 |
| Number of contacts in series at DC-23A, 120 V | 3 |
| Switching capacity (main contacts, general use) | 30 A, Rated uninterrupted current max. (UL/CSA) |
| Switching capacity (auxiliary contacts, general use) | 10A, IU, (UL/CSA) |
| Switching capacity (auxiliary contacts, pilot duty) | A600 (UL/CSA) P600 (UL/CSA) |
| Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3) | 320 A |
| Voltage per contact pair in series | 60 V |
Motor rating
| Assigned motor power at 115/120 V, 60 Hz, 1-phase | 1 HP |
| Assigned motor power at 200/208 V, 60 Hz, 1-phase | 2 HP |
| Assigned motor power at 200/208 V, 60 Hz, 3-phase | 3 HP |
| Assigned motor power at 230/240 V, 60 Hz, 1-phase | 3 HP |
| Assigned motor power at 230/240 V, 60 Hz, 3-phase | 7.5 HP |
| Assigned motor power at 460/480 V, 60 Hz, 3-phase | 10 HP |
| Assigned motor power at 575/600 V, 60 Hz, 3-phase | 15 HP |
Contacts
| Control circuit reliability | 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA) |
| Number of auxiliary contacts (change-over contacts) | 0 |
| Number of auxiliary contacts (normally closed contacts) | 0 |
| Number of auxiliary contacts (normally open contacts) | 0 |
Actuator
| Actuator color | Black |
| Actuator type | Short thumb-grip |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 1.8 W |
| Rated operational current for specified heat dissipation (In) | 32 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | UV resistance only in connection with protective shield. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
