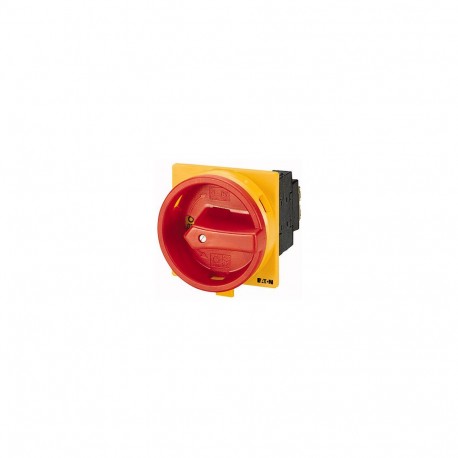

EATON - MOELLER P1-32/EZ P1-32/EZ 048369 Y7-48369 EATON ELECTRIC On-Off switch, 3 pole, 32 A, centre mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-32/EZ 048369 Y7-48369 EATON ELECTRIC On-Off switch, 3 pole, 32 A, centre mounting

P1-32/EZ

048369

Y7-48369

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 32 A, centre mounting Disconnector switch ON-OFF; 3 poles; 32 A; Recessed mounting with Eaton Moeller® series P1 On-Off switch, P1, 32 A, centre mounting, 3 pole, with black thumb grip and front plate On-Off switch, P1, Rated uninterrupted current (Iu): 32 A, Fitted with: Black thumb grip and front plate, Mounting method: Center mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

On-Off switch, 3 pole, 32 A, centre mounting produced by Eaton Moeller functions as a panel-integrated switching unit designed to control electrical circuits within industrial control gear. Such switches direct power flow manually in control desks, distribution boards, and automation enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
048369
Model Code
P1-32/EZ
EAN
4015080483694
Product Length/Depth
95 mm
Product Height
70 mm
Product Width
49 mm
Product Weight
0.152 kg
Certifications
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL
UL 60947-4-1
CSA File No.: 012528
UL Category Control No.: NLRV
CSA
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
