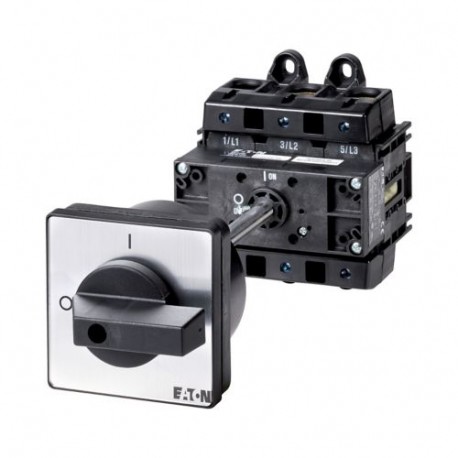

EATON - MOELLER P5-315/Z P5-315/Z 280962 Y7-280962 EATON ELECTRIC On-Off switch, 3 pole, 315 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P5-315/Z 280962 Y7-280962 EATON ELECTRIC On-Off switch, 3 pole, 315 A, rear mounting

P5-315/Z

280962

Y7-280962

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 315 A, rear mounting P5-315/Z Eaton Moeller® series P5 On-Off switch, P5, 315 A, rear mounting, 3 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P5, with black thumb grip and front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 110 kW, Rated uninterrupted current: Iu = 315 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 On-off switch
Catalog Number
280962
Model Code
P5-315/Z
EAN
4015082809621
Product Length/Depth
150 mm
Product Height
150 mm
Product Width
150 mm
Product Weight
2 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
IEC 60947
UL 508
EN 60947-3
VDE
IEC/EN 60947
VDE 0660
CSA
CSA Class No.: 3211-05
IEC/EN 60204
CSA File No.: 223805
CSA-C22.2 No. 14-05
IEC/EN 60947-3
UL Category Control No.: NLRV
CE
UL
CSA-C22.2 No. 94
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 280962 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 315 A
Rated permanent current at AC-23, 400 V (EF011777) 315 A
Rated permanent current at AC-21, 400 V (EF009165) 315 A
Rated operation power at AC-3, 400 V (EF001364) 75 kW
Rated short-time withstand current lcw (EF007050) 5.8 kA
Rated operation power at AC-23, 400 V (EF007027) 110 kW
Switching power at 400 V (EF009166) 110 kW
Conditioned rated short-circuit current Iq (EF001444) 15 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Frame clamp
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 150 mm
Height (EF000040) 150 mm
Depth (EF000049) 150 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
