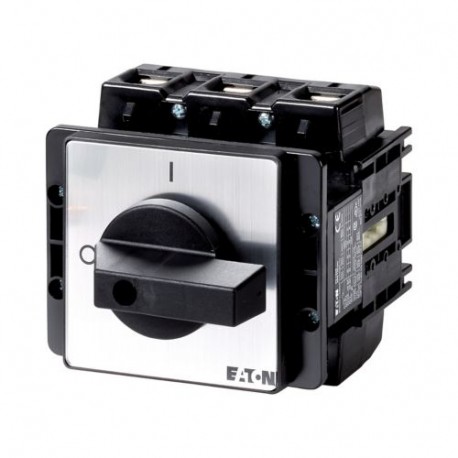

On-Off switch, 3 pole, 315 A, flush mounting P5-315/E Eaton Moeller® series P5 On-Off switch, P5, 315 A, flush mounting, 3 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P5, with black thumb grip and front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 110 kW, Rated uninterrupted current: Iu = 315 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller On-Off switch, 3 pole, 315 A, flush mounting is implemented in heavy industrial switchgear to handle large motor loads and primary distribution switching tasks. These high-ampacity disconnects facilitate secure manual control over major electrical circuits during operational shifts and maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 315 A
  • Rated permanent current at AC-23, 400 V (EF011777): 315 A
  • Rated permanent current at AC-21, 400 V (EF009165): 315 A
  • Rated operation power at AC-3, 400 V (EF001364): 75 kW
  • Rated short-time withstand current lcw (EF007050): 5.8 kA
  • Rated operation power at AC-23, 400 V (EF007027): 110 kW
  • Switching power at 400 V (EF009166): 110 kW
  • Conditioned rated short-circuit current Iq (EF001444): 15 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 On-off switch
Catalog Number
280949
Model Code
P5-315/E
EAN
4015082809492
Product Length/Depth
150 mm
Product Height
150 mm
Product Width
130 mm
Product Weight
1.8 kg
Compliances
CE Marked
Certifications
EN 60947-3
UL 508
IEC 60947
CSA Std. C22.2 No. 14-05
VDE
UL File No.: E36332
CE
CSA File No.: 223805
IEC/EN 60204
IEC/EN 60947
VDE 0660
CSA
CSA-C22.2 No. 14-05
CSA Class No.: 3211-05
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 94
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet
