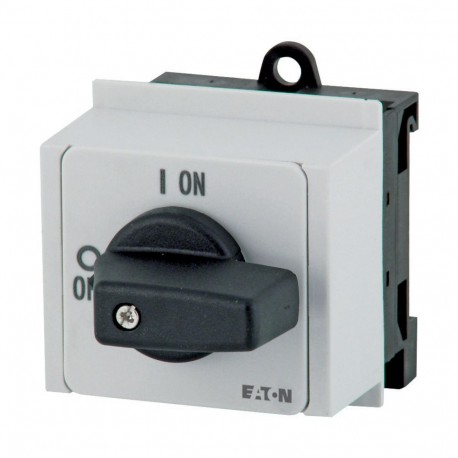

EATON - MOELLER P1-25/IVS P1-25/IVS 052962 Y7-52962 EATON ELECTRIC On-Off switch, 3 pole, 25 A, service distribution board mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/IVS 052962 Y7-52962 EATON ELECTRIC On-Off switch, 3 pole, 25 A, service distribution board mounting

P1-25/IVS

052962

Y7-52962

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 25 A, service distribution board mounting ON-OFF 3-pole disconnector switch 25 A Panel mounting Eaton Moeller® series P1 On-Off switch, P1, 25 A, service distribution board mounting, 3 pole, with black thumb grip and front plate On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Fitted with: Black thumb grip and front plate, Mounting method: Service distribution board mounting, Number of poles: Three-pole, Degree of Protection: NEMA Other

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Panel integration of the P1-25/IVS 052962 Y7-52962 EATON ELECTRIC On-Off switch, 3 pole, 25 A, service distribution board mounting from Eaton Moeller allows efficient local control of sub-circuits. On-off switches are standard components in control panels and automation assemblies, giving operators manual command over individual machine segments or ancillary loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 50 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
052962
Model Code
P1-25/IVS
EAN
4015080529620
Product Length/Depth
91 mm
Product Height
70 mm
Product Width
54 mm
Product Weight
0.153 kg
Certifications
CE
IEC/EN 60947
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947-3
UL 60947-4-1
UL Category Control No.: NLRV
VDE 0660
UL File No.: E36332
CSA-C22.2 No. 94
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
