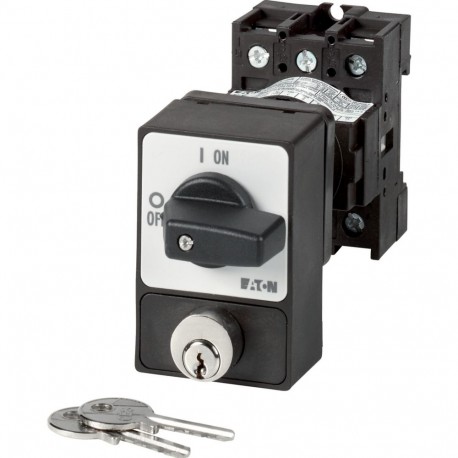

EATON - MOELLER P1-25/Z/SVA(A) P1-25/Z/SVA(A) 050969 Y7-50969 EATON ELECTRIC ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, rear mountin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/Z/SVA(A) 050969 Y7-50969 EATON ELECTRIC ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, rear mountin..

P1-25/Z/SVA(A)

050969

Y7-50969

EATON - MOELLER

1 Pcs.

ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, rear mounting, P ON-OFF disconnector switch 3 poles 25 A SVA cylindrical lock Eaton Moeller® series P1 ON-OFF switches, P1, 25 A, rear mounting, 3 pole, with black thumb grip and front plate, Cylinder lock SVA On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Fitted with: Black thumb grip and front plate, Mounting method: Rear mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring an integrated cylinder lock for enhanced security, this Eaton Moeller P1-25/Z/SVA(A) ON-OFF switch provides dependable manual isolation for industrial loads. Lockable disconnect switches are typically installed on machine enclosures to prevent unauthorized operation during maintenance procedures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 50 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
050969
Model Code
P1-25/Z/SVA(A)
EAN
4015080509691
Product Length/Depth
176 mm
Product Height
73 mm
Product Width
49 mm
Product Weight
0.291 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
