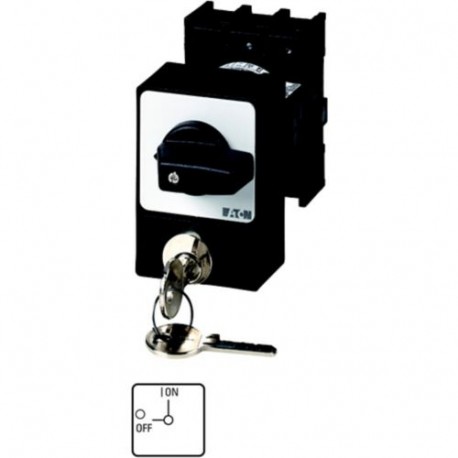

EATON - MOELLER P1-25/E/SVA(A) P1-25/E/SVA(A) 050965 Y7-50965 EATON ELECTRIC ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, flush mounti.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/E/SVA(A) 050965 Y7-50965 EATON ELECTRIC ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, flush mounti..

P1-25/E/SVA(A)

050965

Y7-50965

EATON - MOELLER

1 Pcs.

ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, flush mounting, P ON-OFF disconnect switch. 3 poles. 25 A. Cylinder lock SVA. Eaton Moeller® series P1 ON-OFF switches, P1, 25 A, flush mounting, 3 pole, with black thumb grip and front plate, Cylinder lock SVA On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Fitted with: Black thumb grip and front plate, Mounting method: Flush mounting, Number of poles: Three-pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing reliable manual switching control, the Eaton Moeller P1-25/E/SVA(A) 050965 Y7-50965 EATON ELECTRIC ON-OFF switches, 3 pole, 25 A, Cylinder lock SVA, flush mounti.. manages power distribution across commercial and industrial setups. Engineers install these devices in control panels to facilitate straightforward start and stop actions or local circuit isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
050965
Model Code
P1-25/E/SVA(A)
EAN
4015080509653
Product Length/Depth
139 mm
Product Height
73 mm
Product Width
49 mm
Product Weight
0.268 kg
Certifications
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
VDE 0660
