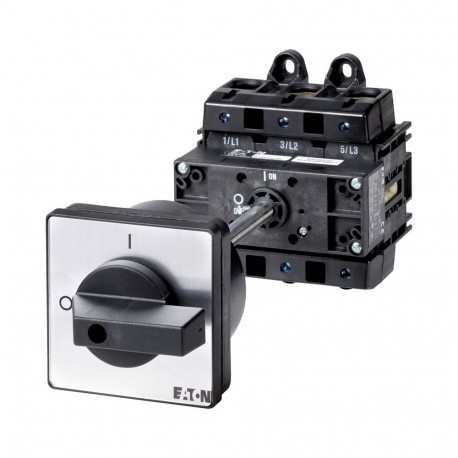

P5-125/Z 280920 Y7-280920 EATON ELECTRIC On-Off switch, 3 pole, 125 A, rear mounting
P5-125/Z
280920
Y7-280920
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller P5-125/Z functions as a high-capacity on-off switch intended for rear mounting within demanding power control architectures. Such switches facilitate secure manual disconnection of heavy loads during maintenance routines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 125 A
- Rated permanent current at AC-23, 400 V (EF011777): 125 A
- Rated permanent current at AC-21, 400 V (EF009165): 125 A
- Rated operation power at AC-3, 400 V (EF001364): 37 kW
- Rated short-time withstand current lcw (EF007050): 2.5 kA
- Rated operation power at AC-23, 400 V (EF007027): 45 kW
- Switching power at 400 V (EF009166): 45 kW
- Conditioned rated short-circuit current Iq (EF001444): 30 kA
More info
▲General specifications
EN 60947-3
UL 508
IEC 60947
VDE
IEC/EN 60947
VDE 0660
CE
UL File No.: E36332
CSA
CSA File No.: 223805
CSA-C22.2 No. 94
IEC/EN 60204
UL
CSA Class No.: 3211-05
CSA-C22.2 No. 14-05
IEC/EN 60947-3
UL Category Control No.: NLRV
