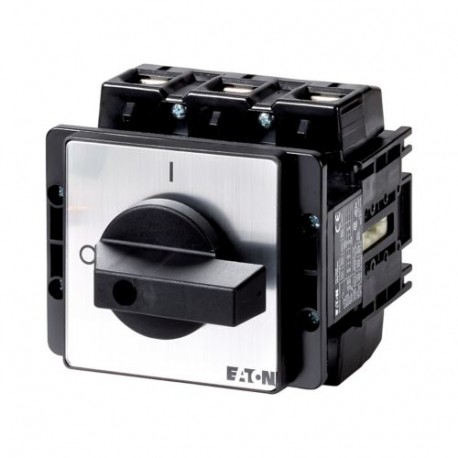

EATON - MOELLER P5-125/E P5-125/E 280897 Y7-280897 EATON ELECTRIC On-Off switch, 3 pole, 125 A, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P5-125/E 280897 Y7-280897 EATON ELECTRIC On-Off switch, 3 pole, 125 A, flush mounting

P5-125/E

280897

Y7-280897

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 125 A, flush mounting P5-125/E Eaton Moeller® series P5 On-Off switch, P5, 125 A, flush mounting, 3 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P5, with black thumb grip and front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 45 kW, Rated uninterrupted current: Iu = 125 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P5 On-off switch
Catalog Number
280897
Model Code
P5-125/E
EAN
4015082808976
Product Length/Depth
90 mm
Product Height
140 mm
Product Width
100 mm
Product Weight
1.128 kg
Compliances
CE Marked
Certifications
UL 508
IEC 60947
EN 60947-3
CSA Std. C22.2 No. 14-05
VDE
CSA File No.: 223805
IEC/EN 60947-3
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
CE
IEC/EN 60947
CSA
UL
CSA Class No.: 3211-05
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 280897 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 125 A
Rated permanent current at AC-23, 400 V (EF011777) 125 A
Rated permanent current at AC-21, 400 V (EF009165) 125 A
Rated operation power at AC-3, 400 V (EF001364) 37 kW
Rated short-time withstand current lcw (EF007050) 2.5 kA
Rated operation power at AC-23, 400 V (EF007027) 45 kW
Switching power at 400 V (EF009166) 45 kW
Conditioned rated short-circuit current Iq (EF001444) 30 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Frame clamp
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 100 mm
Height (EF000040) 140 mm
Depth (EF000049) 90 mm
