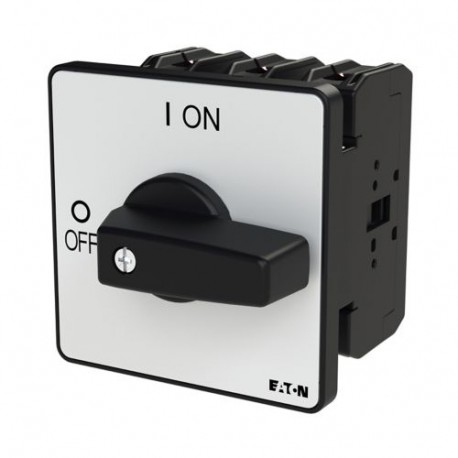

EATON - MOELLER P3-100/E P3-100/E 067201 Y7-67201 EATON ELECTRIC On-Off switch, 3 pole, 100 A, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/E 067201 Y7-67201 EATON ELECTRIC On-Off switch, 3 pole, 100 A, flush mounting

P3-100/E

067201

Y7-67201

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 100 A, flush mounting ON-OFF 3-pole disconnector switch 100 A Flush Mount Eaton Moeller® series P3 On-Off switch, P3, 100 A, flush mounting, 3 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller P3-100/E on-off switch controls the starting and stopping of motors or main circuits within industrial control gear. Flush-mounted rotary switches facilitate efficient operator interaction on control panel doors.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
067201
Model Code
P3-100/E
EAN
4015080672012
Product Length/Depth
100 mm
Product Height
90 mm
Product Width
90 mm
Product Weight
0.33 kg
Certifications
CSA File No.: 012528
CSA Class No.: 3211-05
UL Category Control No.: NLRV
VDE 0660
UL 60947-4-1
IEC/EN 60947
CSA
UL File No.: E36332
IEC/EN 60947-3
UL
CSA-C22.2 No. 94
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
