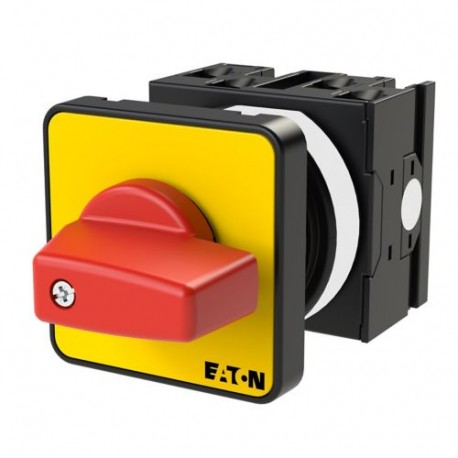

EATON - MOELLER T0-2-10/E-RT T0-2-10/E-RT 011099 Y7-11099 EATON ELECTRIC On-Off switch, 3 pole + N, 20 A, Emergency-Stop function, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-10/E-RT 011099 Y7-11099 EATON ELECTRIC On-Off switch, 3 pole + N, 20 A, Emergency-Stop function, 90 °, ..

T0-2-10/E-RT

011099

Y7-11099

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 20 A, Emergency-Stop function, 90 °, flush mounting Disconnect switch ON-OFF; 3-pole + N; 20 A; Handle, Red/Yellow; 90 °; Mounting Eaton Moeller® series T0 On-Off switch, 3 pole + N, 20 A, Emergency-Stop function, 90 °, flush mounting T0-2-10/E-RT On-Off switch, Product range: On-Off switch, Part group reference: T0, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 3 pole + N, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An emergency stop switch such as the Eaton Moeller T0-2-10/E-RT 011099 Y7-11099 EATON ELECTRIC On-Off switch provides critical safety interruption capabilities, halting machinery operation instantly when hazard protocols are triggered. Its prominent actuator design ensures high visibility and immediate physical access on control panels.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
011099
Model Code
T0-2-10/E-RT
EAN
4015080110996
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
IEC/EN 60947
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
VDE 0660
UL 60947-4-1
CSA File No.: 012528
CSA
UL File No.: E36332
CSA Class No.: 3211-05
UL
CE
IEC/EN 60947-3
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
