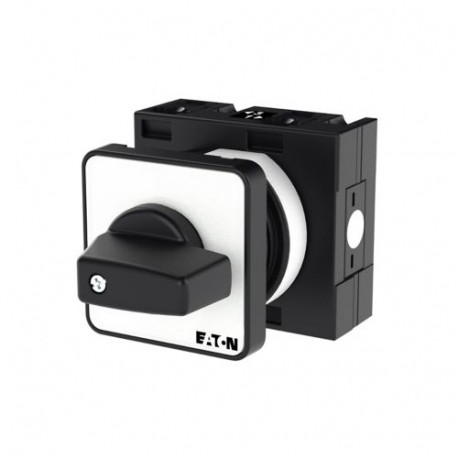

EATON - MOELLER T3-1-102/E T3-1-102/E 076073 Y7-76073 EATON ELECTRIC On-Off switch, 2 pole, 32 A, 90 °, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-102/E 076073 Y7-76073 EATON ELECTRIC On-Off switch, 2 pole, 32 A, 90 °, flush mounting

T3-1-102/E

076073

Y7-76073

EATON - MOELLER

1 Pcs.

On-Off switch, 2 pole, 32 A, 90 °, flush mounting ON-OFF Disconnect Switch 2-pole 32 A 90° Flush Mount Eaton Moeller® series T3 On-Off switch, T3, 32 A, flush mounting, 1 contact unit(s), 2 pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, 2 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller On-Off switch (T3-1-102/E) functions as a mechanical control device used to manually connect and disconnect electrical circuits in industrial machinery and distribution panels. These components provide reliable circuit interruption for motor control and auxiliary systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Version as number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
076073
Model Code
T3-1-102/E
EAN
4015080760733
Product Length/Depth
79 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.11 kg
Certifications
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA
IEC/EN 60947
UL File No.: E36332
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60204
UL
CE
CSA File No.: 012528
VDE 0660
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
