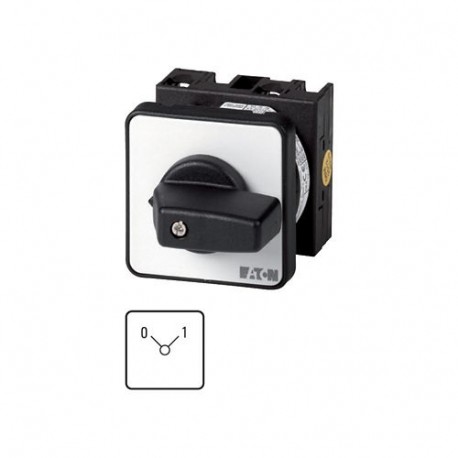

T0-1-15472/E 009302 Y7-9302 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 90 °, maint..
T0-1-15472/E
009302
Y7-9302
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller ON-OFF switch serves as a primary manual disconnect device used to safely energize or de-energize circuits within industrial machinery and distribution boards. These dependable switches ensure maintenance personnel can securely isolate equipment from electrical supplies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA Class No.: 3211-05
UL File No.: E36332
UL
CE
CSA-C22.2 No. 94
IEC/EN 60947
UL Category Control No.: NLRV
IEC/EN 60204
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
VDE 0660
CSA File No.: 012528
