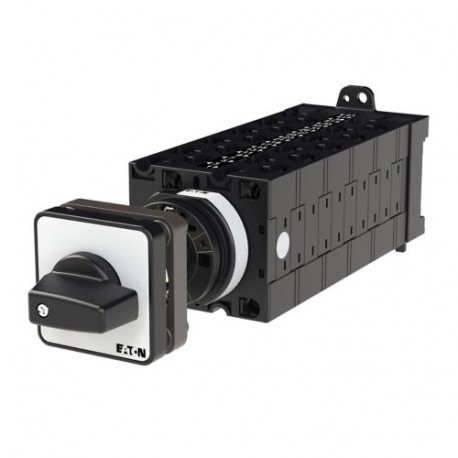

T3-11-8358/Z 003910 Y7-3910 EATON ELECTRIC On-Off switch, 22-pole, 32 A, 90 °, rear mounting
T3-11-8358/Z
003910
Y7-3910
EATON - MOELLER
1 Pcs.
On-Off switch, 22-pole, 32 A, 90 °, rear mounting
ON-OFF Disconnect Switch 22 Pole 32 A 90° Panel Bottom Mount
Eaton Moeller® series T3 On-Off switch, T3, 32 A, rear mounting, 11 contact unit(s), 22-pole, with black thumb grip and front plate
On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, 22-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 11 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T3-11-8358/Z on-off switch controls the flow of electrical current across complex multi-pole circuits within machinery and control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 22
- Motor drive optional (EF007386): No
More info
▲General specifications
Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
003910
Model Code
T3-11-8358/Z
EAN
4015080039105
Product Length/Depth
236 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.566 kg
Certifications
CSA
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CE
CSA-C22.2 No. 94
UL
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60947
VDE 0660
IEC/EN 60204
UL File No.: E36332
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CE
CSA-C22.2 No. 94
UL
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60947
VDE 0660
IEC/EN 60204
UL File No.: E36332
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
