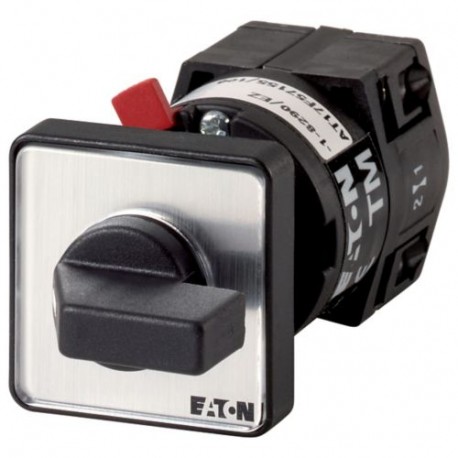

TM-1-8290/EZ 000693 Y7-693 EATON ELECTRIC ON-OFF switches, Contacts: 1, 10 A, front plate: 0-1, 90 °, mainta..

TM-1-8290/EZ

000693

Y7-693

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 1, 10 A, front plate: 0-1, 90 °, maintained, centre mounting Disconnector switch ON-OFF; 1 pole; 10 A; Faceplate 0-1; 90 °; Eaton Moeller® series TM ON-OFF switches, TM, 10 A, center mounting, 1 contact unit(s), Contacts: 1, 90 °, maintained, With 0 (Off) position, 0-1, Design number 8290 On-Off switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller TM-1-8290/EZ 000693 Y7-693 EATON ELECTRIC ON-OFF switches, Contacts: 1, 10 A, front plate: 0-1, 90 °, mainta operates as a compact rotary control switch designed for manually opening and closing low-current electrical circuits in control panels. Such components are broadly applied across commercial and industrial machinery to govern auxiliary power feeds and basic operational states.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 10 A
  • Rated permanent current at AC-21, 400 V (EF009165): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 0 kW
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Rated operation power at AC-23, 400 V (EF007027): 3 kW
  • Switching power at 400 V (EF009166): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0 kA
  • Number of poles (EF001391): 1
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series TM On-off switch
Catalog Number
000693
Model Code
TM-1-8290/EZ
EAN
4015080006930
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.03 kg
Certifications
UL 508
UL Category Control No.: NLRV
Certified by UL for use in Canada
IEC/EN 60947-3
IEC/EN 60947
UL File No.: E36332
CE
IEC/EN 60947-5-1
CSA-C22.2 No. 94
VDE 0660
CSA
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
UL

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
