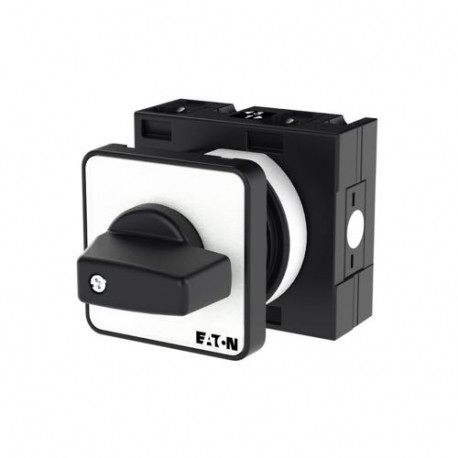

T3-1-8200/E 064208 Y7-64208 EATON ELECTRIC On-Off switch, 1 pole, 32 A, 90 °, flush mounting
T3-1-8200/E
064208
Y7-64208
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T3-1-8200/E 064208 Y7-64208 EATON ELECTRIC On-Off switch, 1 pole, 32 A, 90 °, flush mounting functions as a compact rotary control switch used for manual circuit interruption in machine control panels. On-off switches provide operators with a direct physical means of turning equipment power on or off during daily operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 1
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CSA
IEC/EN 60204
UL 60947-4-1
IEC/EN 60947-3
VDE 0660
UL
IEC/EN 60947
CSA Class No.: 3211-07
CE
UL File No.: E36332
