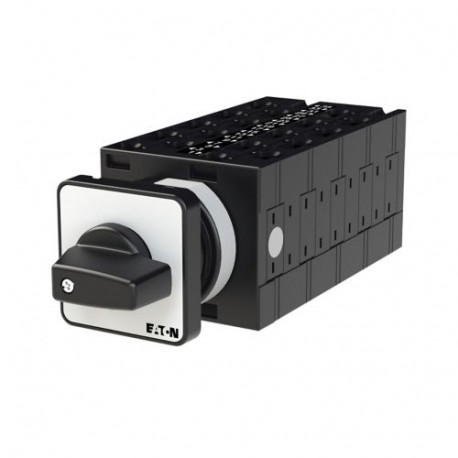

EATON - MOELLER T3-9-8354/E T3-9-8354/E 005880 Y7-5880 EATON ELECTRIC On-Off switch, 18-pole, 32 A, 90 °, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-9-8354/E 005880 Y7-5880 EATON ELECTRIC On-Off switch, 18-pole, 32 A, 90 °, flush mounting

T3-9-8354/E

005880

Y7-5880

EATON - MOELLER

1 Pcs.

On-Off switch, 18-pole, 32 A, 90 °, flush mounting ON-OFF disconnect switch. 18-poles. 32 A. 90°. Flush mounting Eaton Moeller® series T3 On-Off switch, T3, 32 A, flush mounting, 9 contact unit(s), 18-pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, 18-pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 9 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller On-Off switch, 18-pole, 32 A, 90 °, flush mounting (part T3-9-8354/E) is a rotary cam switch engineered to route multiple complex electrical circuits simultaneously. Multi-pole rotary switches are frequently utilized in heavy machinery control panels, test benches, and specialized automation setups where selective circuit routing is required.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 18
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
005880
Model Code
T3-9-8354/E
EAN
4015080058809
Product Length/Depth
171 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.486 kg
Certifications
CSA Class No.: 3211-05
UL
CE
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60204
UL 60947-4-1
UL File No.: E36332
CSA
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
