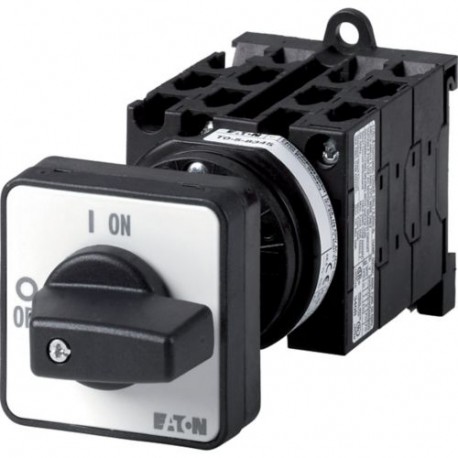

EATON - MOELLER T0-5-8346/Z T0-5-8346/Z 015018 Y7-15018 EATON ELECTRIC On-Off switch, 10p, Ie 12A, FS 0-1, 90°, 48x48 mm, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-8346/Z 015018 Y7-15018 EATON ELECTRIC On-Off switch, 10p, Ie 12A, FS 0-1, 90°, 48x48 mm, rear mounting

T0-5-8346/Z

015018

Y7-15018

EATON - MOELLER

1 Pcs.

On-Off switch, 10p, Ie=12A, FS 0-1, 90°, 48x48 mm, rear mounting ON-OFF Disconnect Switch 10 Pole 20 A 90° Bottom Panel Mount Eaton Moeller® series T0 On-Off switch, T0, 20 A, rear mounting, 5 contact unit(s), 10-pole, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 10-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Offering multi-pole configuration, the Eaton Moeller T0-5-8346/Z 015018 Y7-15018 EATON ELECTRIC On-Off switch manages complex switching tasks inside control enclosures.

Rotary cam switches are standard components in industrial automation panels, utilized for manually routing signals or powering down specific subsystems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 10
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
015018
Model Code
T0-5-8346/Z
EAN
4015080150183
Product Length/Depth
156 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.211 kg
Certifications
CSA-C22.2 No. 94
UL
CSA
VDE 0660
CE
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
IEC/EN 60947
IEC/EN 60947-3
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
