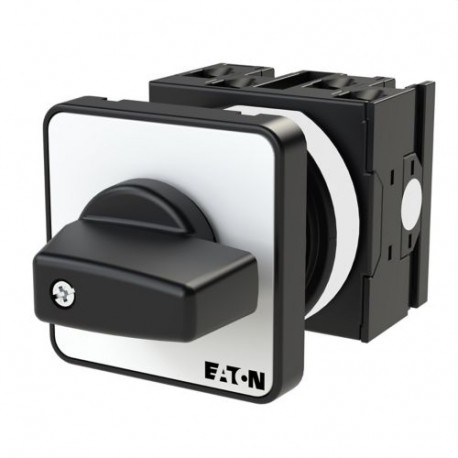

EATON - MOELLER T0-2-15363/E T0-2-15363/E 011360 Y7-11360 EATON ELECTRIC ON-OFF button, Contacts: 4, 20 A, front plate: STOP I START, 45 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15363/E 011360 Y7-11360 EATON ELECTRIC ON-OFF button, Contacts: 4, 20 A, front plate: STOP I START, 45 ..

T0-2-15363/E

011360

Y7-11360

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 4, 20 A, front plate: STOP>I Push-button switch ON-OFF; 4 pole; 20a; rating Plate: STOP>I Eaton Moeller® series T0 ON-OFF button, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, With 0 (Off) position, with spring-return, STOP>I ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: STOP>I

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-2-15363/E on-off button acts as a panel-mounted manual switching device used to open and close electrical circuits securely in commercial and industrial automation equipment. Such manual control units provide operators with direct, tactile command over machine power states and auxiliary systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory ON OFF button
Catalog Number
011360
Model Code
T0-2-15363/E
EAN
4015080113607
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
VDE 0660
CE
UL
UL Category Control No.: NLRV
CSA
CSA-C22.2 No. 94
UL 60947-4-1
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA File No.: 012528
IEC/EN 60947-3
IEC/EN 60204
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
