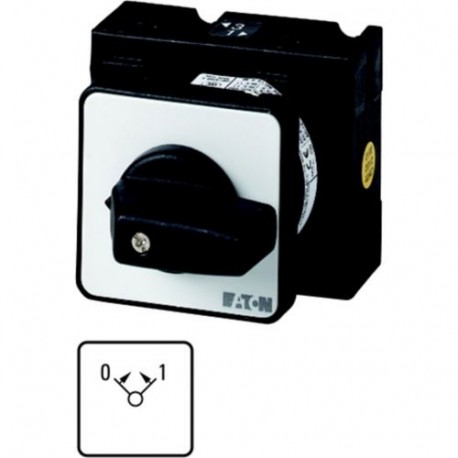

EATON - MOELLER T0-2-15361/E T0-2-15361/E 011354 Y7-11354 EATON ELECTRIC ON-OFF button, Contacts: 4, 20 A, front plate: 0 I 1, 45 °, mome.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-15361/E 011354 Y7-11354 EATON ELECTRIC ON-OFF button, Contacts: 4, 20 A, front plate: 0 I 1, 45 °, mome..

T0-2-15361/E

011354

Y7-11354

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 4, 20 A, front plate: 0>I<1, 45 °, momentary, flush mounting Push-button switch ON-OFF; 4 pole; 20a; rating Plate: 0>I<1; 45 °; Return; flush Mount Eaton Moeller® series T0 ON-OFF button, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, With 0 (Off) position, with spring-return, 0>I<1, Design number 15361 ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0>I<1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller ON-OFF button switch (T0-2-15361/E) functions as a momentary manual control device for initiating specific command sequences in machinery and control panels. Rotary control switches of this nature facilitate reliable operator interventions in complex automation architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Accessory ON OFF button
Catalog Number
011354
Model Code
T0-2-15361/E
EAN
4015080113546
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL 60947-4-1
CSA
CE
UL File No.: E36332
UL
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
