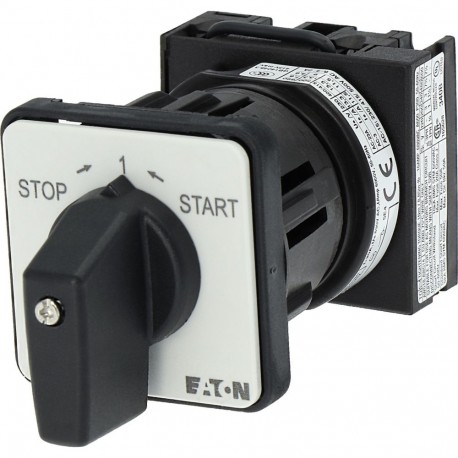

T0-1-15362/EZ 009247 Y7-9247 EATON ELECTRIC ON-OFF button, Contacts: 2, 20 A, front plate: STOP I START, 45 ..
T0-1-15362/EZ
009247
Y7-9247
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller ON-OFF button switch, item T0-1-15362/EZ, serves as a panel-mounted control device designed for starting and stopping industrial equipment safely.
Such toggle mechanisms are routinely integrated into control desks and automation enclosures to give operators direct, tactile command over motor drives. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): On/Off switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 3
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
UL File No.: E36332
CSA
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CE
CSA Class No.: 3211-05
IEC/EN 60947-3
UL
