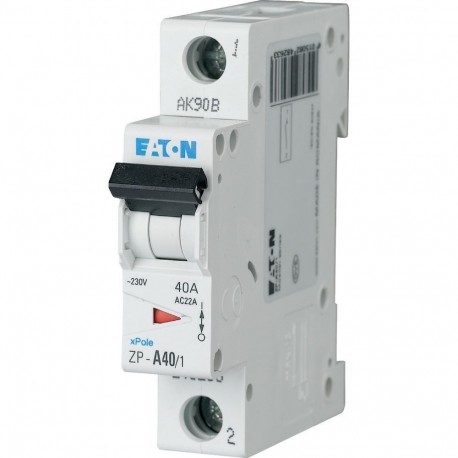

EATON - MOELLER ZP-A40/1 ZP-A40/1 248263 Y7-248263 EATON ELECTRIC Off switch, 1p, 40A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZP-A40/1 248263 Y7-248263 EATON ELECTRIC Off switch, 1p, 40A

ZP-A40/1

248263

Y7-248263

EATON - MOELLER

1 Pcs.

Off switch, 1p, 40A ZP-A40/1 ZP-A40/1. Off switch, 1p, 40A Off switch, type conforms to IEC/EN 60947-1, 1, -3, no. of poles: 1, 2, 3, 3N, amperages: 40 A, 63 A, accessories for protective switchgear for ZP-A can be used!

Automation > Main switch for distribution board
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller Off switch, 1p, 40A functions as a dependable manual control device utilized to open or close single-phase electrical lines within commercial and industrial distribution boards. Technicians install these components to manage local power feeds and isolate individual equipment loops.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Switching function (EF000189): Off switch
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of contacts as change-over contact (EF008257): 0
  • Number of poles (EF001391): 1
  • Rated current (EF000227): 40 A
  • Rated voltage (EF000228): 400 V
  • Min. rated voltage (EF005025): 230 V
  • Rated switching capacity (EF002563): 0 kA
  • Short-circuit breaking capacity (Icw) (EF002562): 3 kA
  • Voltage type (EF000187): AC
  • With signal lamp (EF000198): No
  • Max. lamp power (EF000260): 0 W
  • Width in number of modular spacings (EF002950): 1
  • Built-in depth (EF000218): 60 mm
  • Degree of protection (IP) (EF005474): IP40

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
248263
Model Code
ZP-A40/1
EAN
4015082482633
Product Length/Depth
80 mm
Product Height
75 mm
Product Width
18 mm
Product Weight
0.093 kg
Compliances
RoHS conform

Product specifications

Degree of protection
IP40
Imprint/indication
Symbol "arrows"
Lamp socket
Other
Built-in depth
60 mm
Lamp power
0 W
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Amperage rating
40 A
Color calotte
Other
Switch type
Off switch
Rated short-time withstand current (Icw)
3 kA
Voltage type
AC
Lamp type
Other
Number of contacts (normally open contacts)
1
Rated operational voltage (Ue) - max
400 V
Rated switching capacity
0 kA
Voltage rating - min
230 V
Width in number of modular spacings
1
Number of poles
Single-pole
