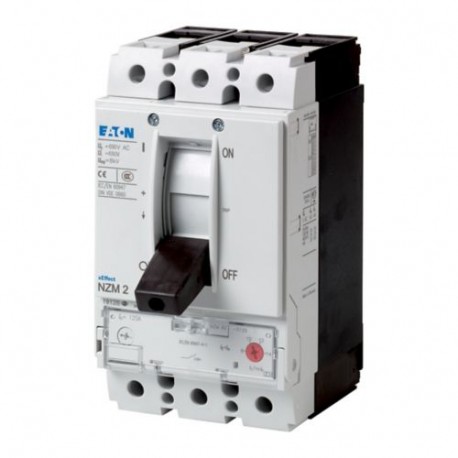

NZMS2-S160 109980 Y7-109980 EATON ELECTRIC NZM Auto Int., 3P, Iu: 160A
NZMS2-S160
109980
Y7-109980
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller NZMS2-S160 109980 is a three-pole automatic circuit breaker used within electrical switchgear to provide reliable overcurrent protection for commercial and industrial circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 160 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 80 A
- Adjustment range undelayed short-circuit release (EF007131): 8 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
Product specifications
Motor drive optional
DIN rail (top hat rail) mounting optional
